Description
Multiple-Sensing-Technologie
Dieses Gerät integriert Funktionen der Videoüberwachung und der Raucherkennung und bietet eine Lösung für die Fernkontrolle per Kamera.
- Flammenerkennung
- Rauchmelder
- Temperaturerkennung
- Feuchtigkeitserkennung

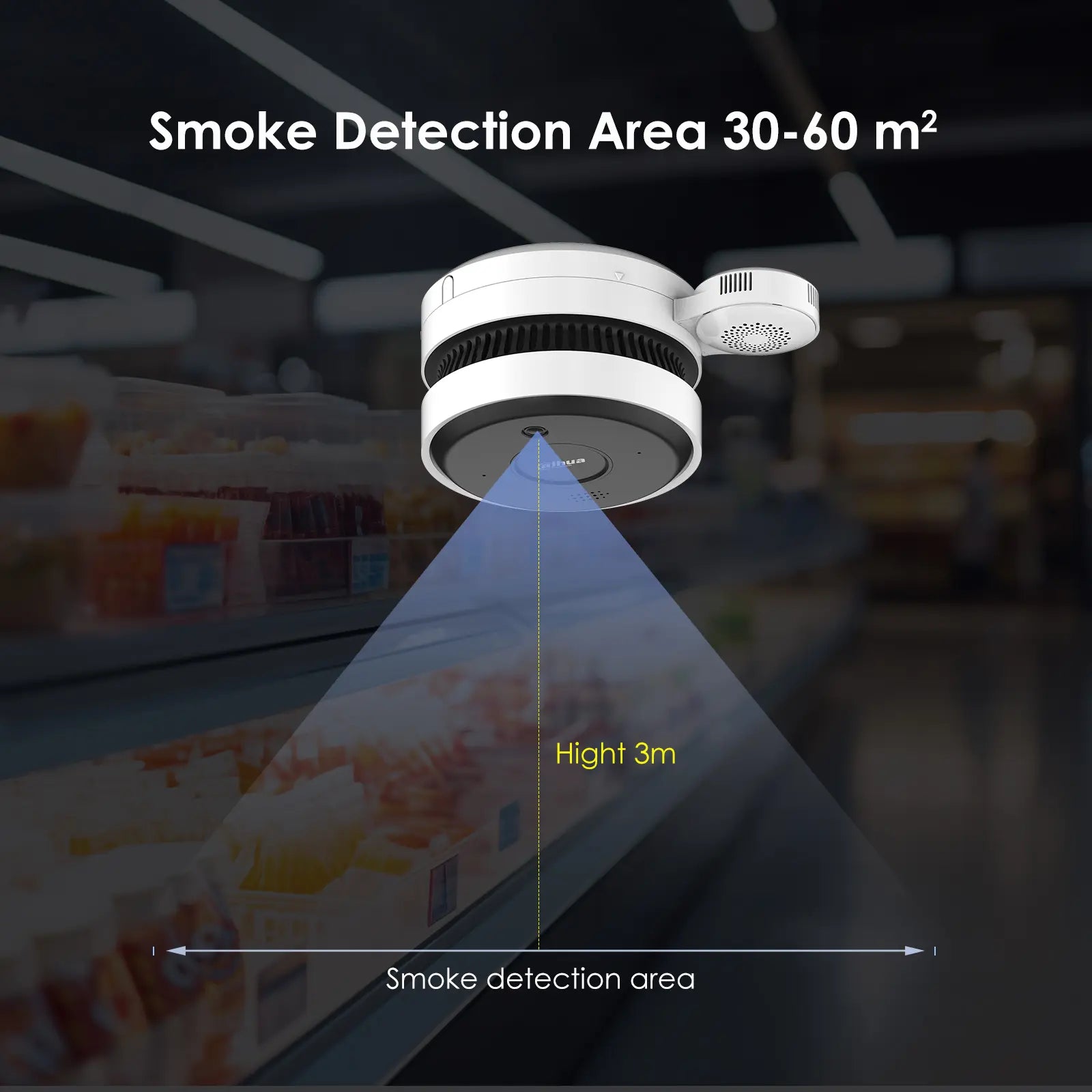

Erkennung im großen Maßstab
Der Raucherkennungsbereich dieses Geräts kann bis zu 30–60 m² und der Flammenerkennungsbereich bis zu 267 m² betragen.
Unterer Fehlalarm
Der intelligente Algorithmus des Geräts erkennt effektiv die Staubkompensation und reduziert Fehlalarme.

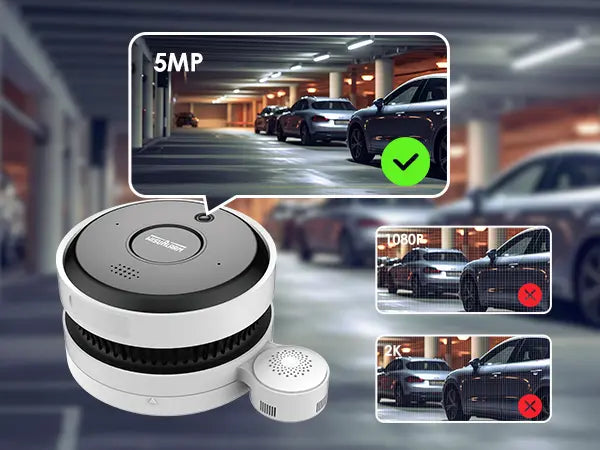

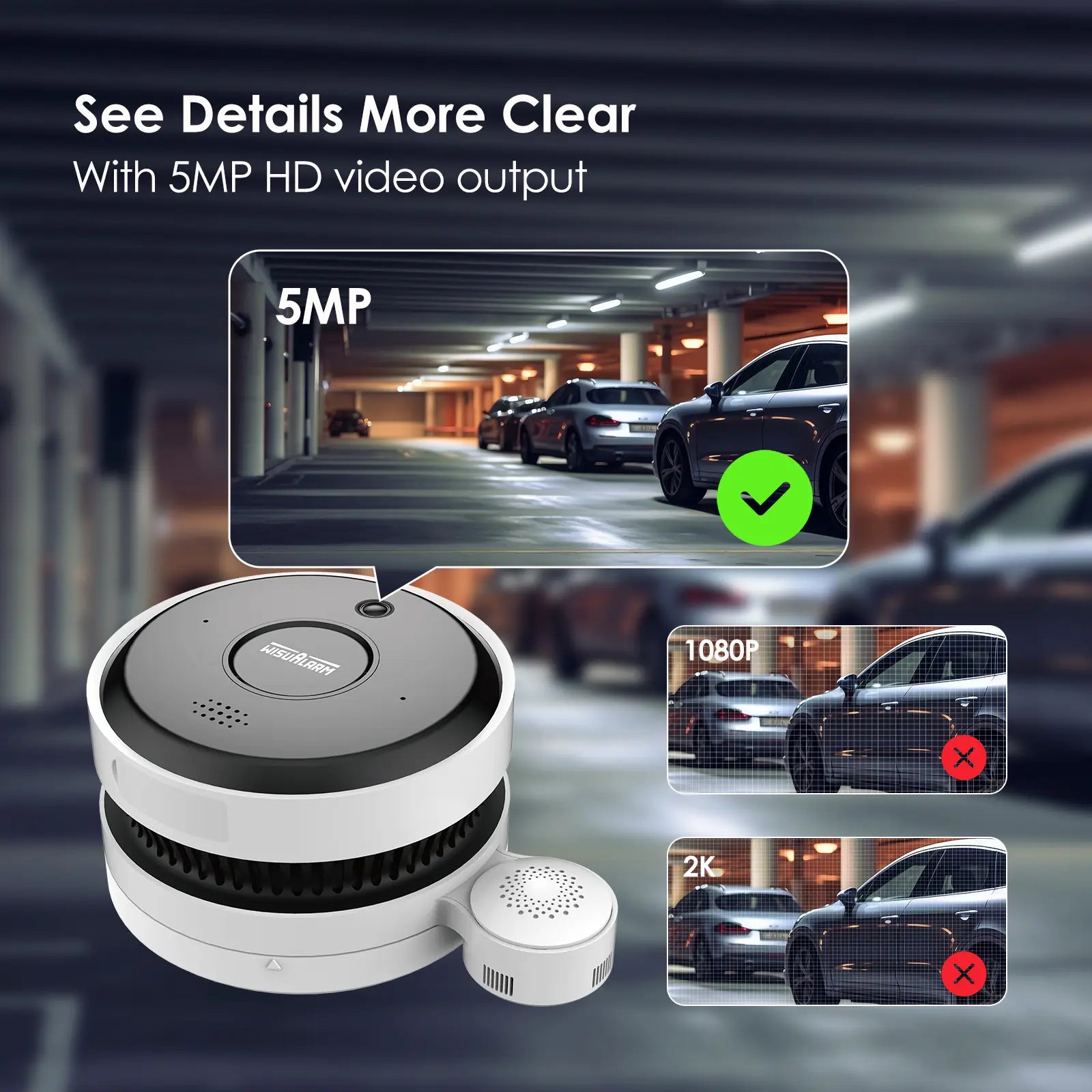

5MP High-Definition
To capture every tiny smoke trace—even faint fumes from smoldering paper or early-stage smoke plumes. Unlike low-pixel detectors that blur details, its sharp imaging lets the system spot smoke accurately, even in dim rooms.

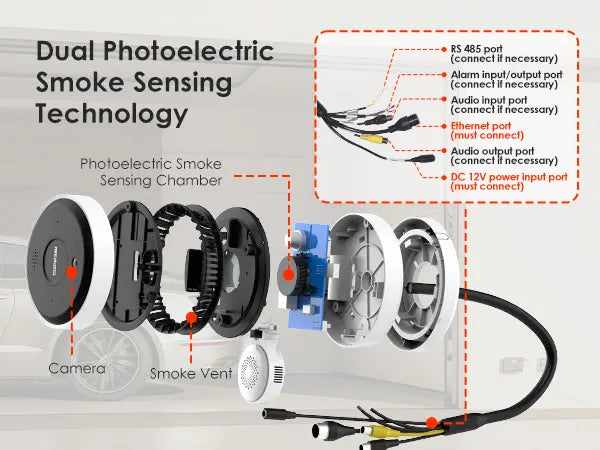

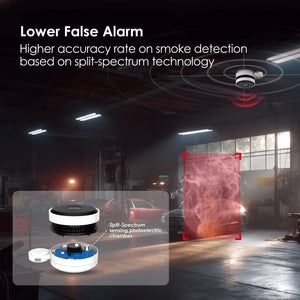

Dual Photoelectric Technology
The dual photoelectric design precisely distinguishes real smoke (from fires or smoldering objects) from interference like dust, steam, or cooking fumes—effectively reducing annoying false alerts.

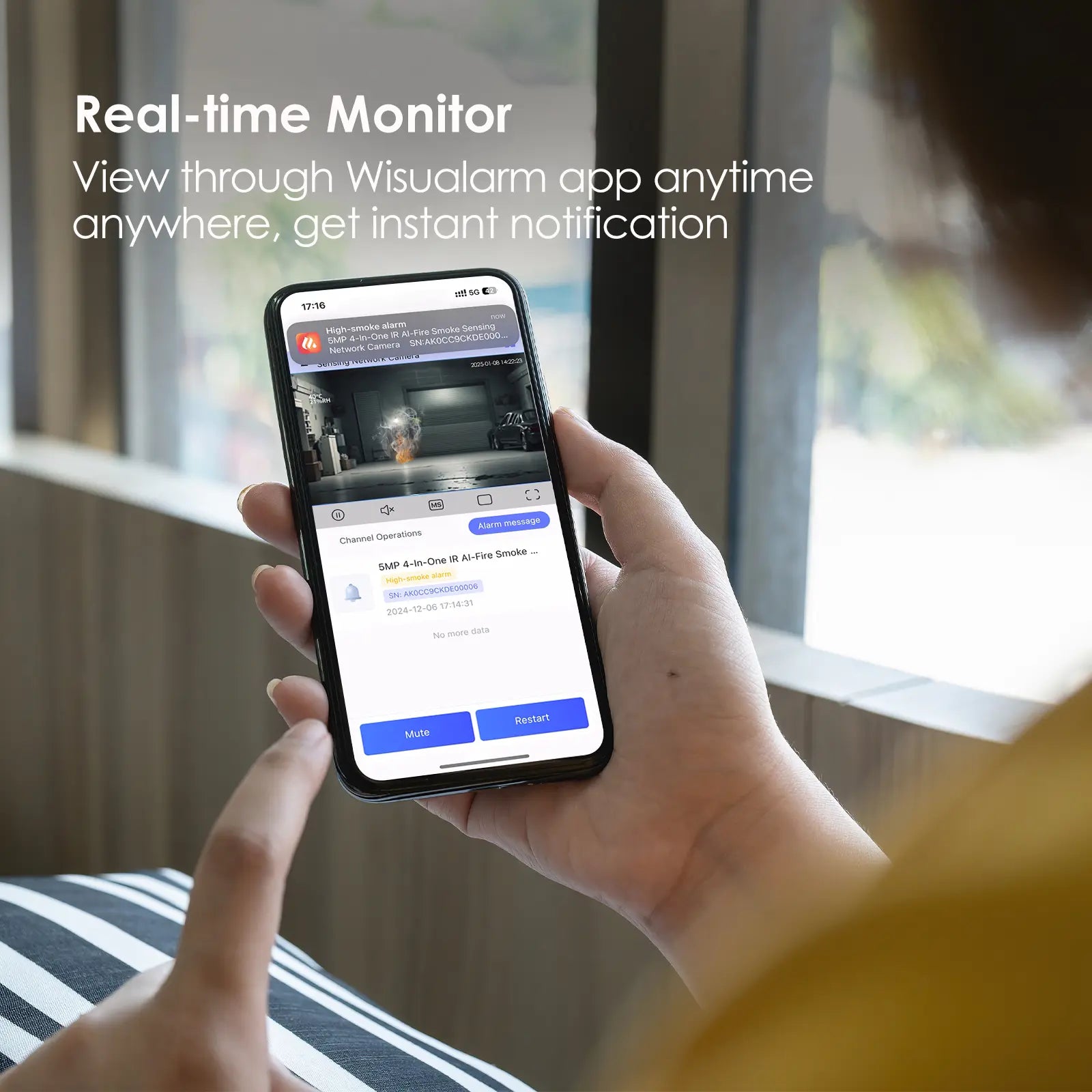

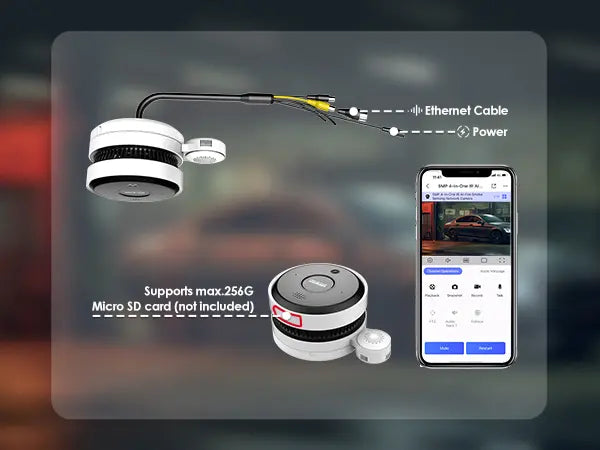

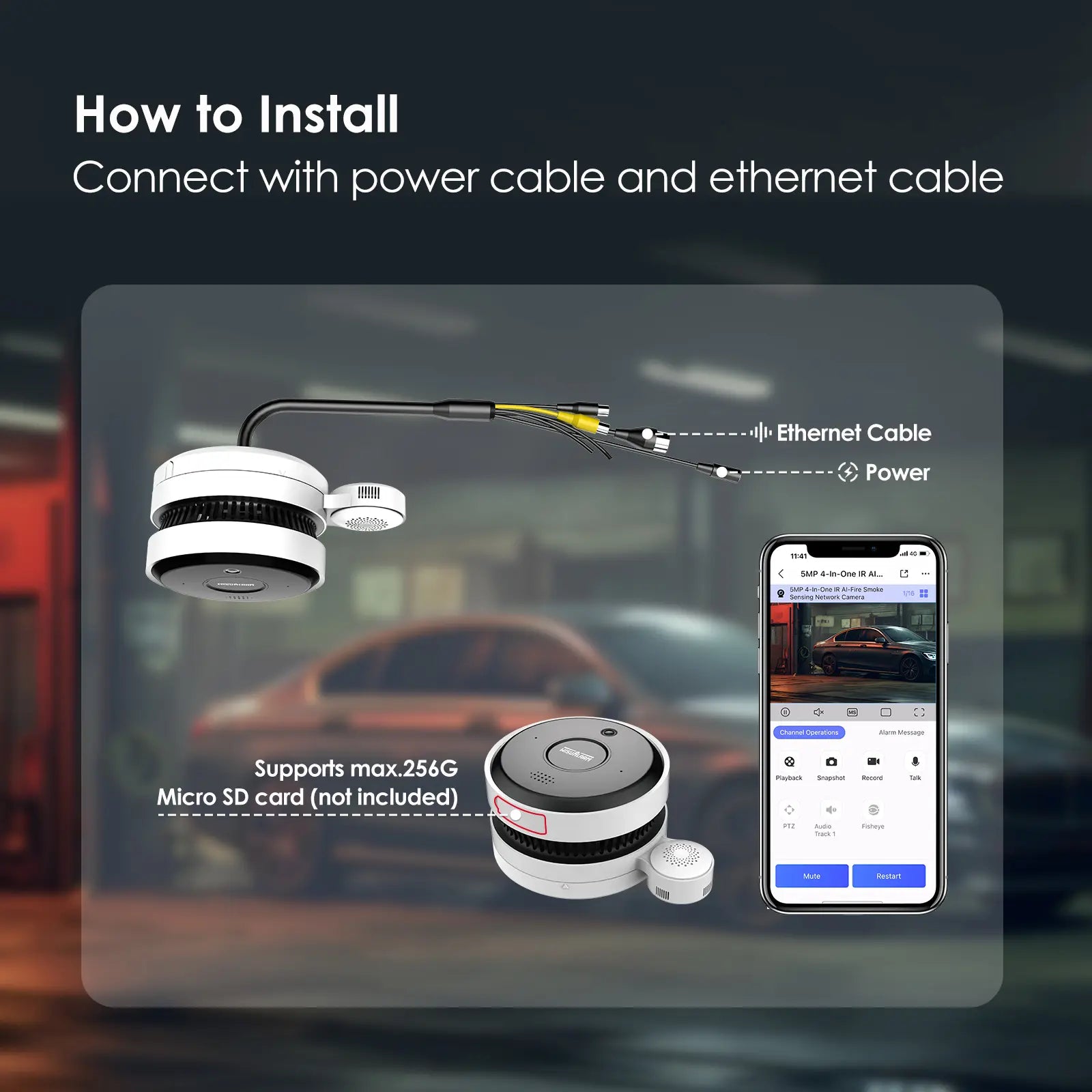

Connect to Phone App

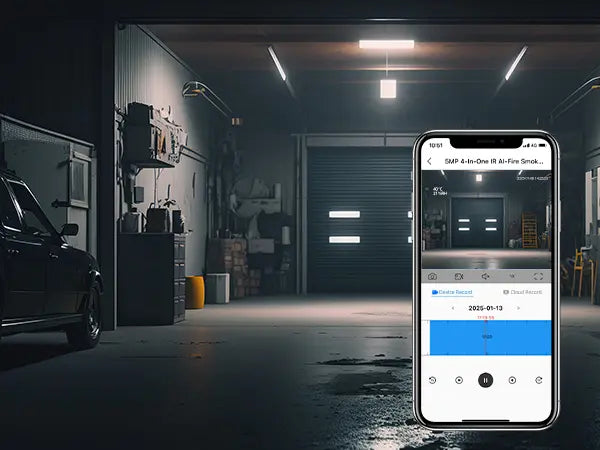

Plug in an Ethernet cable for stable network connection, then pair with Wisualarm app to remotely monitor feeds, get instant smoke alerts anytime.Supports microSD card insertion (SD card not included) to save key footage (up to 256GB).
Multiple Application
Whether you need it for your home garage, convenience shop, or warehouse, this product is designed to deliver optimal performance in any environment.
Specifications
Spezifikationen
Protection Area
30 m²–60 m²
Operating Principle
Photoelectric
Alarm Method
Sound and LED Indicator
Power
12V DC/PoE and 3V lithium battery
Operating Current
≤ 30uA (Camera excluded); ≤ 300mA (Camera included)
Back-up Battery Life
＞ 3 years
Alarm Sound Pressure
≥ 85 dB (A) @ 3 m (9.84 ft)
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Relative Humidity
0-95% RH (non condensing)
Product Dimensions
Φ120 mm × 79 mm (Φ4.72" × 3.11" )
Net Weight
442 g ( 0.98 lb)
Installation
Ceiling mount
Lens
Included
Communication
1 RJ-45 PoE 10M/100M Ethernet ports
Protocol
HTTP;TCP;RTSP;RTP;UDP;RTCP
;SMTP;FTP;DHCP;DNS;DDNS
;IPv4/v6;SNMP;QoS;UPnP;NTP
User
10 channels at most
